ADS54RF63-ADX4

Product Description :

Product Description

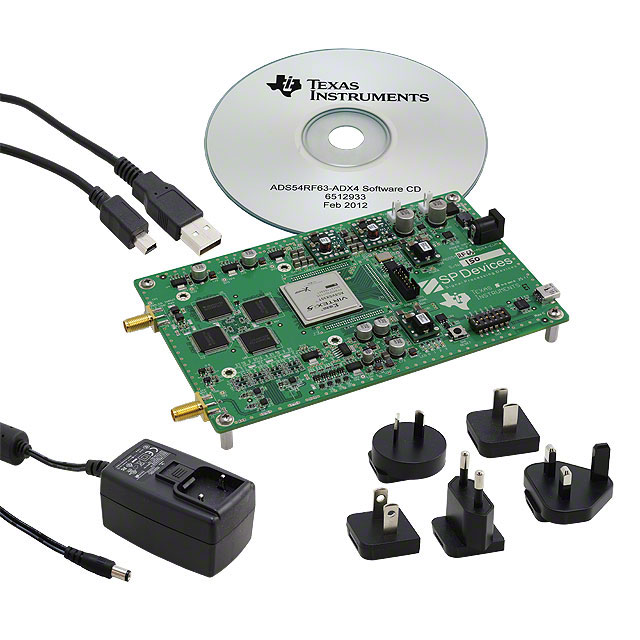

The ADS54RF63-ADX4 board is a high-performance, dual-channel analog-to-digital converter (ADC) evaluation board designed to evaluate the ADS54RF63, a 16-bit, 500 MSPS ADC with a wide input bandwidth. This product is designed to showcase the performance of the ADS54RF63 in various applications, including communications, test and measurement, and defense. The board features a flexible input interface, onboard clocking, and power management, making it an ideal platform for performance evaluation and rapid prototyping.

Product Attributes :

Type	Description
Category	Development Boards, Kits, Programmers Evaluation Boards Analog to Digital Converters (ADCs) Evaluation Boards
Mfr	Texas Instruments
Series	-
Package	Box
Product Status	Obsolete
Number of A/D Converters	4
Number of Bits	12
Sampling Rate (Per Second)	550M
Data Interface	LVDS
Input Range	2.2Vpp
Power (Typ) @ Conditions	-
Utilized IC / Part	ADS54RF63
Supplied Contents	Board(s)
Base Product Number	ADS54RF63

Product Information

Resolution: 16-bit
Sampling Rate: 500 MSPS
Input Bandwidth: 3 GHz
Channels: Dual-Channel
Interface: JESD204B
Power Supply: 1.8V, 3.3V
Package: 10mm x 10mm BGA

Product Features

High Resolution and Sampling Rate
Wide Input Bandwidth
Dual-Channel Architecture
Flexible Input Interface
Onboard Clocking and Power Management
Compact and Robust Design

Product Application

Communications Systems
Radar and Electronic Warfare Systems
Test and Measurement Equipment
Medical Imaging
Industrial Automation

Related Issues

Q: Is the evaluation board compatible with other ADCs in the same series?
A: The evaluation board is specifically designed for the ADS54RF63 and may not be directly compatible with other ADCs in the series. However, it provides valuable insights into the performance and features of the ADS54RF63, which can be beneficial for evaluating similar ADCs.
Q: What software tools are recommended for interfacing with the evaluation board?
A: Texas Instruments provides software drivers, GUI, and evaluation modules for interfacing with the ADS54RF63-ADX4 board, enabling users to quickly start evaluating the ADC`s performance and characteristics.
Q: Can the evaluation board be powered using a single power supply voltage?
A: The evaluation board requires both 1.8V and 3.3V power supplies for proper operation. It is essential to provide the specified power supply voltages to ensure optimal performance.
